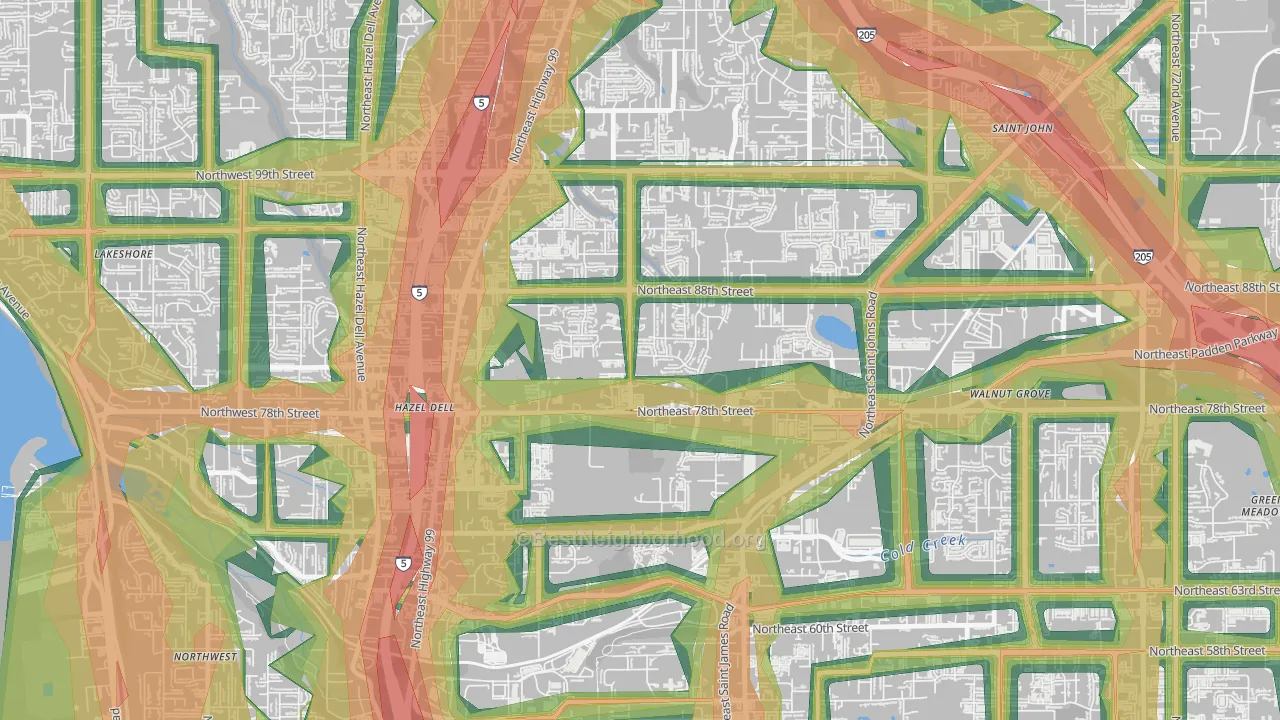

This map shows modeled outdoor noise across Northeast Hazel Dell at 100-meter resolution, combining road, aviation, and rail sources. Green areas measure below 45 dBA. Orange and red exceed the EPA's 55 dBA outdoor threshold linked to long-term health effects. Use the layer toggles to view each source on its own or all together.
What the numbers sound like
- 30 dBAWhisper
- 40 dBASoft rainfall
- 45 dBAQuiet suburban street at night
- 50 dBAQuiet office
- 55 dBAEPA outdoor threshold: light traffic 100 ft away
- 60 dBANormal conversation an arm's length away
- 65 dBABusy restaurant
- 70 dBAHighway traffic 50 ft away
- 80 dBACity bus interior
Population Above the EPA Outdoor Threshold
The EPA's 55 dBA outdoor reference level is a common benchmark for residential noise exposure, especially for activity interference, annoyance, and long-term community noise concerns. About 1,855 Northeast Hazel Dell residents, or 25.8%, live above that level. By land area, 35.5% of Northeast Hazel Dell is above 55 dBA.
See how noise in Northeast Hazel Dell compares to similar-sized neighborhoods.
Noise by Part of Northeast Hazel Dell
Average noise levels for Northeast Hazel Dell residents, grouped by direction from the center of Northeast Hazel Dell. Western Northeast Hazel Dell carries the highest population-weighted average; Central Northeast Hazel Dell carries the lowest. Just 13% of residents in Central Northeast Hazel Dell live in blocks above the EPA's 55 dBA threshold, about half the share in Western Northeast Hazel Dell.
Central Northeast Hazel Dell
13% of people above 55 dBA
Eastern Northeast Hazel Dell
35% of people above 55 dBA
Northern Northeast Hazel Dell
17% of people above 55 dBA
Southern Northeast Hazel Dell
22% of people above 55 dBA
Western Northeast Hazel Dell
35% of people above 55 dBA
Western Northeast Hazel Dell sounds about 68% louder than Central Northeast Hazel Dell to the human ear, a 7.5 dBA gap. Every 10 dBA roughly doubles perceived loudness. Within any of these directions, two homes a quarter mile apart can still differ by 10 or more dBA depending on how close they sit to a major highway.
Loudest Road Corridors
The model evaluates every road in Northeast Hazel Dell using federal traffic counts, posted speeds, heavy-truck ratios, and pavement type. The source level shown is the modeled noise at the road centerline, where it is loudest. Noise drops with distance, faster in vegetated areas and slower over open pavement.
How far back from I-5 do you need to be?
I-5 produces an estimated 77 dBA at its loudest centerline points. Noise drops logarithmically with distance, with the exact rate depending on what's between you and the road. Tree cover, walls, terrain, and pavement type all matter. At roughly a quarter mile back, traffic fades into the noise level of a soft rainfall.
Calculated from the model's calibrated attenuation formula. About 24% of Northeast Hazel Dell sits under tree canopy (heavier than most neighborhoods) and roughly 47% is impervious surface like pavement and rooftops. Both are folded into the per-place decay rate above. Heavier canopy pulls noise down faster with distance; impervious surfaces slow the drop.
Airport Noise
Portland International (PDX) sits south of Northeast Hazel Dell. The U.S. Department of Transportation models aviation noise around this airport from federal traffic data, and the model uses those federal measurements rather than synthetic predictions.
Blocks under the approach and departure paths carry combined road-plus-aviation noise, with some exceeding 65 dBA on the map's Overall layer. Blocks on the opposite side of Northeast Hazel Dell, particularly to the north, show no measurable aviation contribution. Use the Aviation toggle on the map above to isolate the airport's footprint.
How Noise Is Distributed Across Northeast Hazel Dell
The bar chart below shows the share of Northeast Hazel Dell residents in each noise band. About 75% of residents live below the EPA's 55 dBA threshold, and roughly 8% live in blocks above 60 dBA. Long-term exposure in that range is linked to elevated stress hormones and cardiovascular risk.
How Northeast Hazel Dell Compares
Northeast Hazel Dell sits at the quieter end of the spectrum. Below: how Northeast Hazel Dell's average outdoor noise and share of residents above the EPA threshold compare with Felida-Starcrest, West Minnehaha, Landover-Sharmel, and Bagley Downs.
Average noise level (dBA)
Northeast Hazel Dell's 52.6 dBA pop-weighted average is at the quieter end of the spectrum. Washington as a whole averages 51.3 dBA and the U.S. averages 52.0 dBA. Both are lower than Northeast Hazel Dell because most of either area is rural land away from major roads.
Share of residents above 55 dBA
About 25.8% of Northeast Hazel Dell residents live in blocks where outdoor levels exceed the EPA's 55 dBA threshold. That's in the middle of its peer group. Measured by land area instead, 35.5% of Northeast Hazel Dell's footprint sits above 55 dBA, against a Washington average of 27.7% and a national average of 28.1%.
What This Means if You're Moving to Northeast Hazel Dell
- Distance from highways matters more than the neighborhood name. Two homes in the same zip code can differ by 20 dBA if one sits 100 meters from I-5 and the other 500 meters away. The model captures this at 100-meter resolution, so noise exposure changes block by block.
- Tree canopy can help reduce modeled noise exposure. Roughly 24% of Northeast Hazel Dell is under tree cover (heavier than most neighborhoods), and the dominant land cover is medium-intensity developed land. Both are measured from federal USDA Forest Service and USGS satellite imagery at 30-meter resolution. Streets with 60% or higher canopy show 3 to 5 dBA lower noise than comparable streets with bare ground or pavement, which is why the per-place decay rate above already accounts for it.
- Airport noise is directional. Portland International's approach paths concentrate aviation noise to the south. Neighborhoods to the north of downtown show no measurable contribution from the airport.
Sources & Methodology
The BestNeighborhood noise model is calibrated against nearly one million federal ground-truth measurements across four states. Road noise is computed from segment-level federal traffic data and propagated outward using physics-based acoustic decay, with attenuation rates that depend on the surrounding land cover.
Federal datasets used:
FHWA Highway Performance Monitoring System: road geometry, traffic counts, lane configuration
U.S. DoT Bureau of Transportation Statistics National Transportation Noise Map: aviation and rail noise, road calibration ground truth
USGS / MRLC National Land Cover Database: land cover and impervious surface coverage
USDA Forest Service Tree Canopy Cover: vegetation density for sound propagation
U.S. Census Bureau TIGER/Line: block-level geography and population
U.S. EPA Levels Document: 55 dBA outdoor reference level
All inputs are published federal datasets. Block-level noise is computed by combining road, rail, and aviation sound sources in the energy domain, the same physics used in professional environmental noise assessments. Read the full methodology.
