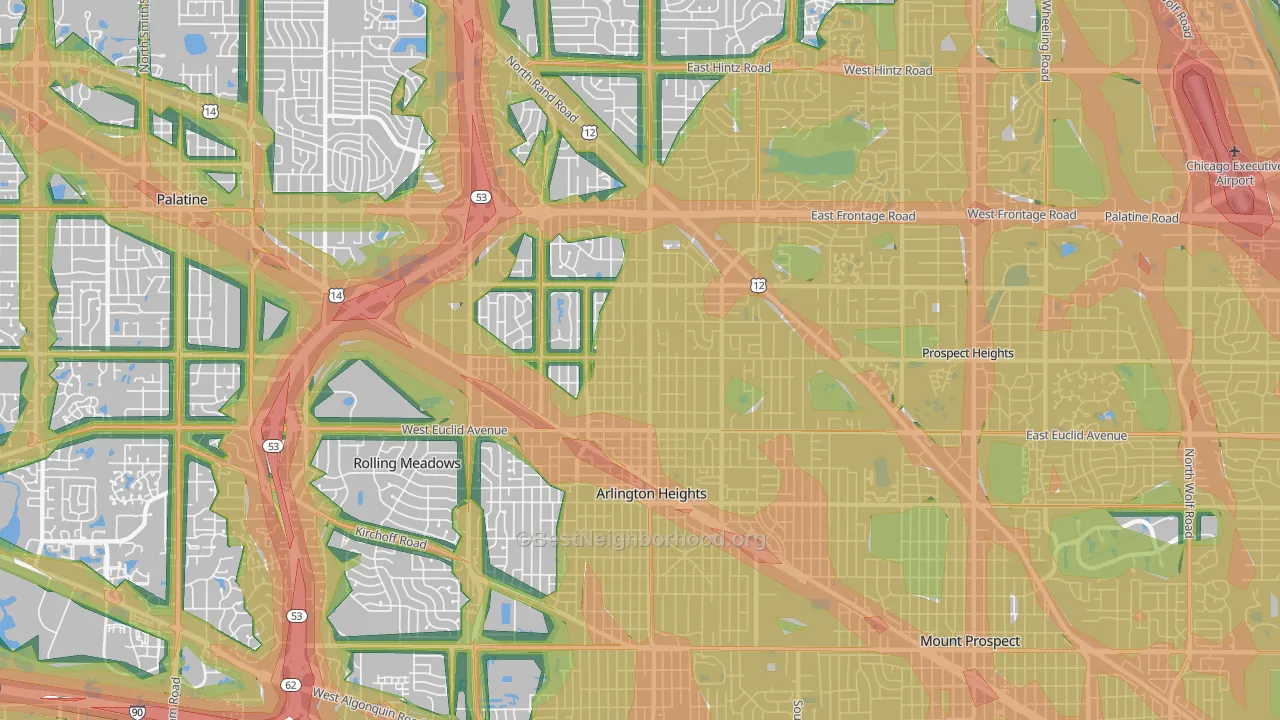

This map shows modeled outdoor noise across Arlington Heights at 100-meter resolution, combining road, aviation, and rail sources. Green areas measure below 45 dBA. Orange and red exceed the EPA's 55 dBA outdoor threshold linked to long-term health effects. Use the layer toggles to view each source on its own or all together.
What the numbers sound like
- 30 dBAWhisper
- 40 dBASoft rainfall
- 45 dBAQuiet suburban street at night
- 50 dBAQuiet office
- 55 dBAEPA outdoor threshold: light traffic 100 ft away
- 60 dBANormal conversation an arm's length away
- 65 dBABusy restaurant
- 70 dBAHighway traffic 50 ft away
- 80 dBACity bus interior
Population Above the EPA Outdoor Threshold
The EPA's 55 dBA outdoor reference level is a common benchmark for residential noise exposure, especially for activity interference, annoyance, and long-term community noise concerns. About 24,641 Arlington Heights residents, or 33.0%, live above that level. By land area, 40.2% of Arlington Heights is above 55 dBA.
See how noise in Arlington Heights compares to similar-sized cities.
Noise by Part of Arlington Heights
Average noise levels for Arlington Heights residents, grouped by direction from the center of Arlington Heights. Central Arlington Heights carries the highest population-weighted average; Western Arlington Heights carries the lowest. Just 28% of residents in Western Arlington Heights live in blocks above the EPA's 55 dBA threshold, about half the share in Central Arlington Heights.
Central Arlington Heights
68% of people above 55 dBA
Eastern Arlington Heights
28% of people above 55 dBA
Northern Arlington Heights
31% of people above 55 dBA
Southern Arlington Heights
36% of people above 55 dBA
Western Arlington Heights
28% of people above 55 dBA
Central Arlington Heights sounds about 22% louder than Western Arlington Heights to the human ear, a 2.9 dBA gap. Every 10 dBA roughly doubles perceived loudness. Within any of these directions, two homes a quarter mile apart can still differ by 10 or more dBA depending on how close they sit to a major highway.
Loudest Road Corridors
The model evaluates every road in Arlington Heights using federal traffic counts, posted speeds, heavy-truck ratios, and pavement type. The source level shown is the modeled noise at the road centerline, where it is loudest. Noise drops with distance, faster in vegetated areas and slower over open pavement.
How far back from Jane Addams Memorial Tollway do you need to be?
Jane Addams Memorial Tollway produces an estimated 76 dBA at its loudest centerline points. Noise drops logarithmically with distance, with the exact rate depending on what's between you and the road. Tree cover, walls, terrain, and pavement type all matter. At roughly a quarter mile back, traffic fades into the noise level of a quiet suburban street at night.
Calculated from the model's calibrated attenuation formula. About 15% of Arlington Heights sits under tree canopy (lighter than most cities) and roughly 45% is impervious surface like pavement and rooftops. Both are folded into the per-place decay rate above. Heavier canopy pulls noise down faster with distance; impervious surfaces slow the drop.
Rail Noise
Active freight rail runs through parts of Arlington Heights. For most blocks the rail-only contribution is small. Combined road-plus-rail noise rarely exceeds road noise on its own. The exceptions are the handful of blocks within roughly a quarter mile of the right-of-way during pass-through hours.
Use the Rail toggle on the map above to isolate rail's contribution from road and aviation.
Airport Noise
Chicago O'Hare International (ORD) sits southeast of Arlington Heights. The U.S. Department of Transportation measures aviation noise around this airport directly, and the model uses those federal measurements rather than synthetic predictions.
Blocks under the approach and departure paths carry combined road-plus-aviation noise, with some exceeding 50 dBA on the map's Overall layer. Blocks on the opposite side of Arlington Heights, particularly to the northwest, show no measurable aviation contribution. Use the Aviation toggle on the map above to isolate the airport's footprint.
How Noise Is Distributed Across Arlington Heights
The bar chart below shows the share of Arlington Heights residents in each noise band. About 69% of residents live below the EPA's 55 dBA threshold, and roughly 6% live in blocks above 60 dBA. Long-term exposure in that range is linked to elevated stress hormones and cardiovascular risk.
How Arlington Heights Compares
Arlington Heights sits at the quieter end of the spectrum. Below: how Arlington Heights's average outdoor noise and share of residents above the EPA threshold compare with Des Plaines, Palatine, Schaumburg, and Mount Prospect.
Average noise level (dBA)
Arlington Heights's 53.7 dBA pop-weighted average is at the quieter end of the spectrum. Illinois as a whole averages 52.6 dBA and the U.S. averages 52.0 dBA. Both are lower than Arlington Heights because most of either area is rural land away from major roads.
Share of residents above 55 dBA
About 33.0% of Arlington Heights residents live in blocks where outdoor levels exceed the EPA's 55 dBA threshold. That's in the middle of its peer group. Measured by land area instead, 40.2% of Arlington Heights's footprint sits above 55 dBA, against a Illinois average of 29.2% and a national average of 28.1%.
What This Means if You're Moving to Arlington Heights
- Distance from highways matters more than the neighborhood name. Two homes in the same zip code can differ by 20 dBA if one sits 100 meters from Jane Addams Memorial Tollway and the other 500 meters away. The model captures this at 100-meter resolution, so noise exposure changes block by block.
- Tree canopy can help reduce modeled noise exposure. Roughly 15% of Arlington Heights is under tree cover (lighter than most cities), and the dominant land cover is low-intensity developed land. Both are measured from federal USDA Forest Service and USGS satellite imagery at 30-meter resolution. Streets with 60% or higher canopy show 3 to 5 dBA lower noise than comparable streets with bare ground or pavement, which is why the per-place decay rate above already accounts for it.
- Airport noise is directional. Chicago O'Hare International's approach paths concentrate aviation noise to the southeast. Neighborhoods to the northwest of downtown show no measurable contribution from the airport.
Sources & Methodology
The BestNeighborhood noise model is calibrated against nearly one million federal ground-truth measurements across four states. Road noise is computed from segment-level federal traffic data and propagated outward using physics-based acoustic decay, with attenuation rates that depend on the surrounding land cover.
Federal datasets used:
FHWA Highway Performance Monitoring System: road geometry, traffic counts, lane configuration
U.S. DoT Bureau of Transportation Statistics National Transportation Noise Map: aviation and rail noise, road calibration ground truth
USGS / MRLC National Land Cover Database: land cover and impervious surface coverage
USDA Forest Service Tree Canopy Cover: vegetation density for sound propagation
U.S. Census Bureau TIGER/Line: block-level geography and population
U.S. EPA Levels Document: 55 dBA outdoor reference level
All inputs are published federal datasets. Block-level noise is computed by combining road, rail, and aviation sound sources in the energy domain, the same physics used in professional environmental noise assessments. Read the full methodology.
