Noise Levels in Graphite, NC | Find Quiet Neighborhoods With Our Sound Map
42 dBA
Average noise across Graphite
Quiet suburban street at night
3
Residents above the EPA 55 dBA threshold
1% of Graphite residents
74 dBA
Loudest residential point
City bus interior

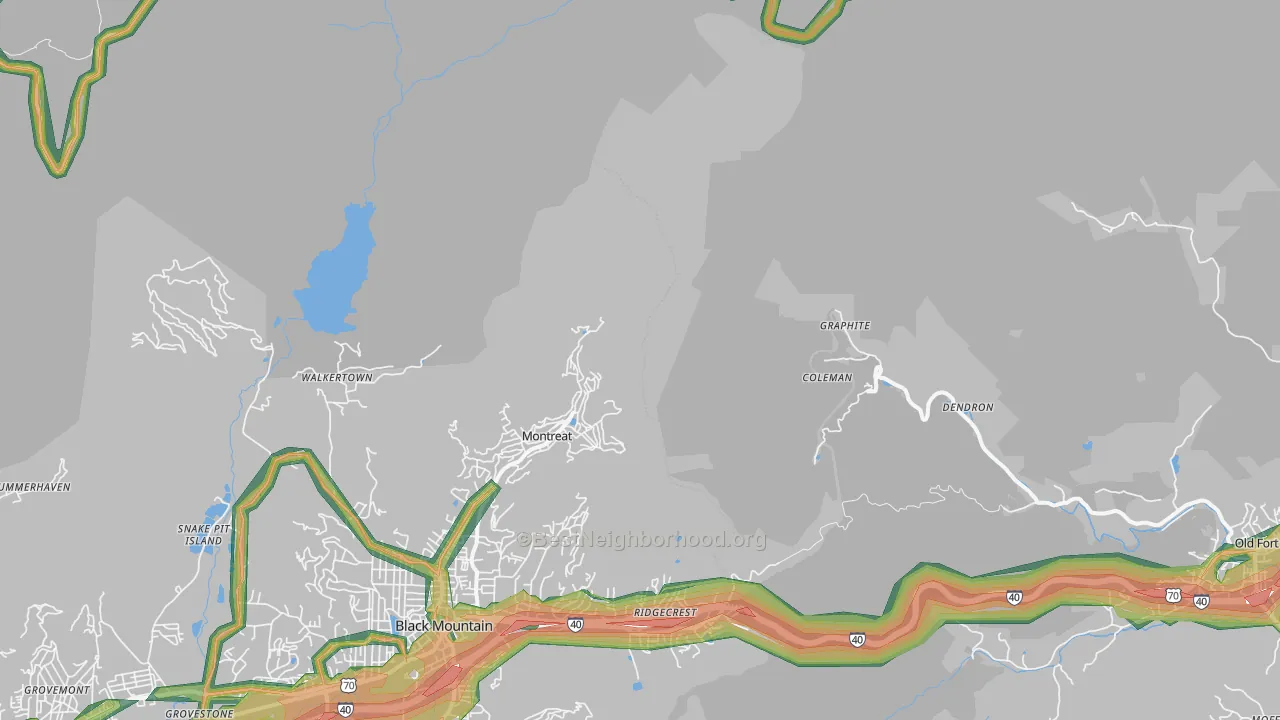

This map shows modeled outdoor noise across Graphite at 100-meter resolution, combining road, aviation, and rail sources. Green areas measure below 45 dBA. Orange and red exceed the EPA's 55 dBA outdoor threshold linked to long-term health effects. Use the layer toggles to view each source on its own or all together.
Overall
Road
Rail
Aviation
Click the map to explore
35 dBa55 dBa (EPA limit)90+ dBa
3545557090
Quietest (dBA)Loudest
Colorblind friendlyoff
What the numbers sound like
30 dBAWhisper
40 dBASoft rainfall
45 dBAQuiet suburban street at night
50 dBAQuiet office
55 dBAEPA outdoor threshold: light traffic 100 ft away
60 dBANormal conversation an arm's length away
65 dBABusy restaurant
70 dBAHighway traffic 50 ft away
80 dBACity bus interior
Population Above the EPA Outdoor Threshold
The EPA's 55 dBA outdoor reference level is a common benchmark for residential noise exposure, especially for activity interference, annoyance, and long-term community noise concerns. About 3 Graphite residents, or 0.7%, live above that level. By land area, 4.1% of Graphite is above 55 dBA.
Eastern Graphite sounds about 0% louder than Western Graphite to the human ear, a 0.0 dBA gap. Every 10 dBA roughly doubles perceived loudness. Within any of these directions, two homes a quarter mile apart can still differ by 10 or more dBA depending on how close they sit to a major highway.
-->
Loudest Road Corridors
The model evaluates every road in Graphite using federal traffic counts, posted speeds, heavy-truck ratios, and pavement type. The source level shown is the modeled noise at the road centerline, where it is loudest. Noise drops with distance, faster in vegetated areas and slower over open pavement.
RoadTypeAvg. source dBAPeak source dBA
Fed-900Minor arterial57.057
SR-1227Local55.055
SR-1407Local55.055
How far back from Fed-900 do you need to be?
Fed-900 produces an estimated 57 dBA at its loudest centerline points. Noise drops logarithmically with distance, with the exact rate depending on what's between you and the road. Tree cover, walls, terrain, and pavement type all matter. At roughly a quarter mile back, traffic fades into the noise level of a soft rainfall.
At source
57 dBA
Normal conversation an arm’s length away
165 ft
43 dBA
Quiet suburban street at night
330 ft
35 dBA
Soft rainfall
660 ft
35 dBA
Soft rainfall
¼ mile
35 dBA
Soft rainfall
½ mile
35 dBA
Soft rainfall
Calculated from the model's calibrated attenuation formula. About 90% of Graphite sits under tree canopy (much heavier than most cities) and roughly 0% is impervious surface like pavement and rooftops. Both are folded into the per-place decay rate above. Heavier canopy pulls noise down faster with distance; impervious surfaces slow the drop.
Rail Noise
Active freight rail runs through parts of Graphite. For most blocks the rail-only contribution is small. Combined road-plus-rail noise rarely exceeds road noise on its own. The exceptions are the handful of blocks within roughly a quarter mile of the right-of-way during pass-through hours.
Use the Rail toggle on the map above to isolate rail's contribution from road and aviation.
How Noise Is Distributed Across Graphite
The bar chart below shows the share of Graphite residents in each noise band. About 100% of residents live below the EPA's 55 dBA threshold, and roughly 0% live in blocks above 60 dBA. Long-term exposure in that range is linked to elevated stress hormones and cardiovascular risk.
How Graphite Compares
Graphite sits at the quieter end of the spectrum. Below: how Graphite's average outdoor noise and share of residents above the EPA threshold compare with Montreat, Little Switzerland, Moffitt Hill, and Sunny View.
Average noise level (dBA)
Graphite's 41.7 dBA pop-weighted average is at the quieter end of the spectrum. North Carolina as a whole averages 49.7 dBA and the U.S. averages 52.0 dBA. Both are lower than Graphite because most of either area is rural land away from major roads.
Share of residents above 55 dBA
About 0.7% of Graphite residents live in blocks where outdoor levels exceed the EPA's 55 dBA threshold. That's in the middle of its peer group. Measured by land area instead, 4.1% of Graphite's footprint sits above 55 dBA, against a North Carolina average of 22.6% and a national average of 28.1%.
What This Means if You're Moving to Graphite
Distance from highways matters more than the neighborhood name. Two homes in the same zip code can differ by 20 dBA if one sits 100 meters from Fed-900 and the other 500 meters away. The model captures this at 100-meter resolution, so noise exposure changes block by block.
Tree canopy can help reduce modeled noise exposure. Roughly 90% of Graphite is under tree cover (much heavier than most cities), and the dominant land cover is deciduous forest. Both are measured from federal USDA Forest Service and USGS satellite imagery at 30-meter resolution. Streets with 60% or higher canopy show 3 to 5 dBA lower noise than comparable streets with bare ground or pavement, which is why the per-place decay rate above already accounts for it.
Sources & Methodology
The BestNeighborhood noise model is calibrated against nearly one million federal ground-truth measurements across four states. Road noise is computed from segment-level federal traffic data and propagated outward using physics-based acoustic decay, with attenuation rates that depend on the surrounding land cover.
All inputs are published federal datasets. Block-level noise is computed by combining road, rail, and aviation sound sources in the energy domain, the same physics used in professional environmental noise assessments. Read the full methodology.
