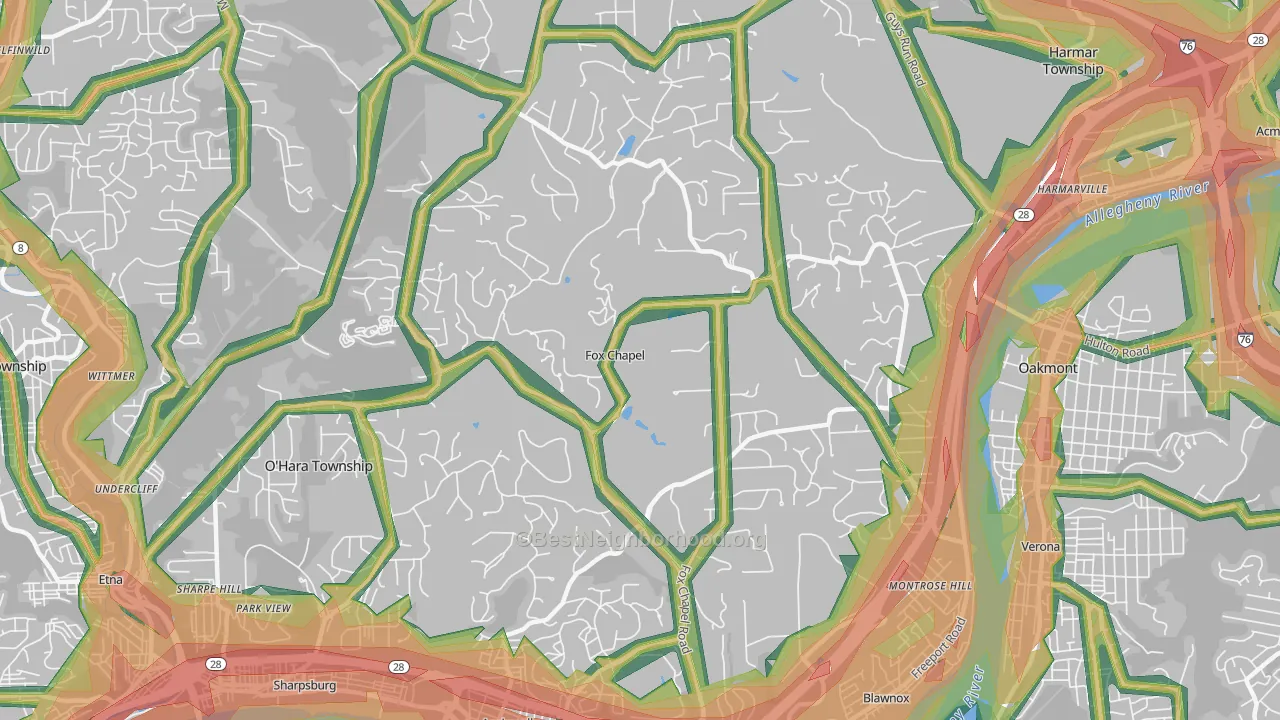

This map shows modeled outdoor noise across Fox Chapel at 100-meter resolution, combining road, aviation, and rail sources. Green areas measure below 45 dBA. Orange and red exceed the EPA's 55 dBA outdoor threshold linked to long-term health effects. Use the layer toggles to view each source on its own or all together.
What the numbers sound like
- 30 dBAWhisper
- 40 dBASoft rainfall
- 45 dBAQuiet suburban street at night
- 50 dBAQuiet office
- 55 dBAEPA outdoor threshold: light traffic 100 ft away
- 60 dBANormal conversation an arm's length away
- 65 dBABusy restaurant
- 70 dBAHighway traffic 50 ft away
- 80 dBACity bus interior
Population Above the EPA Outdoor Threshold
The EPA's 55 dBA outdoor reference level is a common benchmark for residential noise exposure, especially for activity interference, annoyance, and long-term community noise concerns. About 833 Fox Chapel residents, or 16.4%, live above that level. By land area, 19.3% of Fox Chapel is above 55 dBA.
See how noise in Fox Chapel compares to similar-sized cities.
Noise by Part of Fox Chapel
Average noise levels for Fox Chapel residents, grouped by direction from the center of Fox Chapel. Southern Fox Chapel carries the highest population-weighted average; Western Fox Chapel carries the lowest. Just 7% of residents in Western Fox Chapel live in blocks above the EPA's 55 dBA threshold, a third of the share in Southern Fox Chapel.
Eastern Fox Chapel
14% of people above 55 dBA
Northern Fox Chapel
12% of people above 55 dBA
Southern Fox Chapel
25% of people above 55 dBA
Western Fox Chapel
7% of people above 55 dBA
Southern Fox Chapel sounds about 42% louder than Western Fox Chapel to the human ear, a 5.1 dBA gap. Every 10 dBA roughly doubles perceived loudness. Within any of these directions, two homes a quarter mile apart can still differ by 10 or more dBA depending on how close they sit to a major highway.
Loudest Road Corridors
The model evaluates every road in Fox Chapel using federal traffic counts, posted speeds, heavy-truck ratios, and pavement type. The source level shown is the modeled noise at the road centerline, where it is loudest. Noise drops with distance, faster in vegetated areas and slower over open pavement.
How far back from Aktw Riding Trl Ln do you need to be?
Aktw Riding Trl Ln produces an estimated 60 dBA at its loudest centerline points. Noise drops logarithmically with distance, with the exact rate depending on what's between you and the road. Tree cover, walls, terrain, and pavement type all matter. At roughly a quarter mile back, traffic fades into the noise level of a soft rainfall.
Calculated from the model's calibrated attenuation formula. About 67% of Fox Chapel sits under tree canopy (much heavier than most cities) and roughly 4% is impervious surface like pavement and rooftops. Both are folded into the per-place decay rate above. Heavier canopy pulls noise down faster with distance; impervious surfaces slow the drop.
Airport Noise
Pittsburgh International (PIT) sits west of Fox Chapel. The U.S. Department of Transportation models aviation noise around this airport from federal traffic data, and the model uses those federal measurements rather than synthetic predictions.
Blocks under the approach and departure paths carry combined road-plus-aviation noise, with some exceeding 65 dBA on the map's Overall layer. Blocks on the opposite side of Fox Chapel, particularly to the east, show no measurable aviation contribution. Use the Aviation toggle on the map above to isolate the airport's footprint.
How Noise Is Distributed Across Fox Chapel
The bar chart below shows the share of Fox Chapel residents in each noise band. About 90% of residents live below the EPA's 55 dBA threshold, and roughly 2% live in blocks above 60 dBA. Long-term exposure in that range is linked to elevated stress hormones and cardiovascular risk.
How Fox Chapel Compares
Fox Chapel sits the lowest among the peer group. Below: how Fox Chapel's average outdoor noise and share of residents above the EPA threshold compare with Oakmont, West View, Turtle Creek, and Forest Hills.
Average noise level (dBA)
Fox Chapel's 51.3 dBA pop-weighted average is the lowest among the peer group. Pennsylvania as a whole averages 52.9 dBA and the U.S. averages 52.0 dBA. Both are lower than Fox Chapel because most of either area is rural land away from major roads.
Share of residents above 55 dBA
About 16.4% of Fox Chapel residents live in blocks where outdoor levels exceed the EPA's 55 dBA threshold. That's fewer than any of its peer group. Measured by land area instead, 19.3% of Fox Chapel's footprint sits above 55 dBA, against a Pennsylvania average of 33.5% and a national average of 28.1%.
What This Means if You're Moving to Fox Chapel
- Distance from highways matters more than the neighborhood name. Two homes in the same zip code can differ by 20 dBA if one sits 100 meters from Aktw Riding Trl Ln and the other 500 meters away. The model captures this at 100-meter resolution, so noise exposure changes block by block.
- Tree canopy can help reduce modeled noise exposure. Roughly 67% of Fox Chapel is under tree cover (much heavier than most cities), and the dominant land cover is low-density developed open space. Both are measured from federal USDA Forest Service and USGS satellite imagery at 30-meter resolution. Streets with 60% or higher canopy show 3 to 5 dBA lower noise than comparable streets with bare ground or pavement, which is why the per-place decay rate above already accounts for it.
- Airport noise is directional. Pittsburgh International's approach paths concentrate aviation noise to the west. Neighborhoods to the east of downtown show no measurable contribution from the airport.
Sources & Methodology
The BestNeighborhood noise model is calibrated against nearly one million federal ground-truth measurements across four states. Road noise is computed from segment-level federal traffic data and propagated outward using physics-based acoustic decay, with attenuation rates that depend on the surrounding land cover.
Federal datasets used:
FHWA Highway Performance Monitoring System: road geometry, traffic counts, lane configuration
U.S. DoT Bureau of Transportation Statistics National Transportation Noise Map: aviation and rail noise, road calibration ground truth
USGS / MRLC National Land Cover Database: land cover and impervious surface coverage
USDA Forest Service Tree Canopy Cover: vegetation density for sound propagation
U.S. Census Bureau TIGER/Line: block-level geography and population
U.S. EPA Levels Document: 55 dBA outdoor reference level
All inputs are published federal datasets. Block-level noise is computed by combining road, rail, and aviation sound sources in the energy domain, the same physics used in professional environmental noise assessments. Read the full methodology.
